RFX11
Starting at $520 ea.
Diameters 19″ -22″ | Widths 8.5″ – 12″

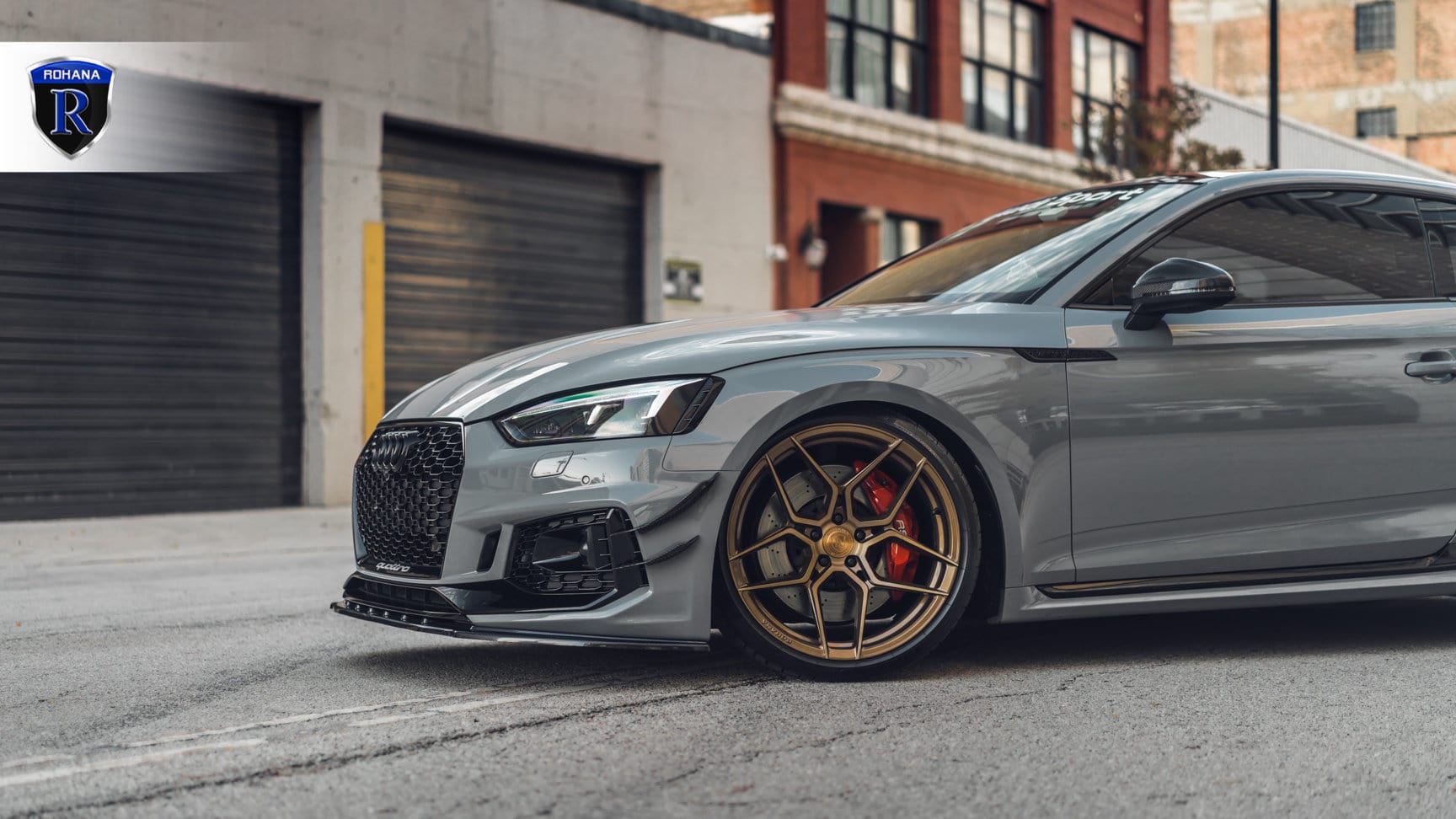

The RFX11 features a signature split 5 spoke design. Five different concavity profiles make this the most cutting-edge wheel to date. Paired with the rotary forging technology and an unmatched level of sophisticated design, we created the ultimate street performance wheel.
FINISHES
BRUSHED TITANIUM
BRUSHED BRONZE
GLOSS BLACK
The RFX Series wheels are constructed with the Cross Forged technology. This technique employs three hydraulic rollers, with pressure and heat, to stretch the barrel of the wheel to the specified diameter.
White the wheel spins, the rollers stretch and compress the alloy, enhancing the overall structural rigidity and durability of the wheel.
This method of the wheel manufacturing results in a dramatic reduction in weight in a uniform and natural manner.
Step 1: Starting with a solid block of aluminum immense amounts of pressure is applied to “forge” the aluminum block into a wheel. The aluminum is forged into a disc using extreme heat and pressure.
Step 2: Once the disc starts to take shape, it is then flow formed into a spun blank. The spun black is heat treated to the specific conditions. The heated treated spun blank is then stretched to the customers final configuration.
Step 3: Finally the wheel is now drilled and the design is cut. After cutting, multiple coats of paint are applied to ensure a perfect, long lasting finish.
CONCAVITY PROFILES
Our Cross Forged Series is engineered to provide you with the perfect stance. Some models are offered in five different concavities. Each width and offset is carefully designed to achieve maximum concavity without sacrificing brake clearance.
*Concavity will vary depending on model and offset
WHEEL WIDTH
BOLT PATTERNS & OFFSETS
19″ x 8.5″
5×112 + 25 / +35 / +42
5×114 +35
5×120 +33
19″ x 9.5″
5×112 +30 / +42 / +45
5×114 +40
5×120 +35
5×120 +53
19″ x 11″
5×112 +33
5×120 +33
CONCAVITY PROFILE
Standard
DEEP
SUPER DEEP
WHEEL WIDTH
BOLT PATTERNS & OFFSETS
20″ x 8.5″
5×112 +30
20″ x 9″
5×112 +25 / +35 / +45
5×114 +22 / +35
5×120 +20 / +35
5×130 +45
20″ x 10″
5×112 +15 / +25 / +33
5×112 +45
5×114 +22 / +40
5×115 +20
5×120 +25 / +38
20″ x 10.5″
5×112 +35
5×114 +38
20″ x 11″
5×112 +22 / +30
5×112 +35
5×114 +25
5×114 +50
5×115 +0 / +20
5×120 +28 / +35
5×130 +50
20″ x 12″
5×114 +22
5×115 +0
5×120 +52
5×120 +82
CONCAVITY PROFILE
Standard
MID
DEEP
SUPER DEEP
EXTREME DEEP
WHEEL WIDTH
BOLT PATTERNS & OFFSETS
21″ x 9″
5×112 + 20 / +35
5×114 +35
5×120 +30
5×130 +45
21″ x 10.5″
5×112 +20
5×112 +30
5×114 +38
5×120 +25
5×120 +35
5×130 +45
21″ x 11.5″
5×112 +25
5×120 +20
5×130 +63
21″ x 12″
5×120 +52
CONCAVITY PROFILE
Standard
MID
DEEP
SUPER DEEP
WHEEL WIDTH
BOLT PATTERNS & OFFSETS
22″ x 9″
5×112 + 20 / +35
5×115 +15
5×120 +30
5×130 +42
22″ x 10.5″
5×112 +20 / +45
5×112 +35
5×115 +18
5×120 +20
5×120 +40
5×127 +30
5×130 +28 / +40
22″ x 11″
5×115 -5
22″ x 11.5″
5×112 +28
5×120 +28
5×130 +65
22″ x 12″
5×115 +0
CONCAVITY PROFILE
Standard
MID
DEEP
SUPER DEEP
Our Fitment Specialists have over a decade of experience perfecting the proper fitment for variety of vehicles. If you’re unsure of which wheel specs will fit your application best, contact us and one of our specialists will guide you in the right direction.
