RFC10
Starting at $620 ea.
Diameters 19″ / 20″ / 22″ | Widths 9″ – 12″
Introducing our latest innovation, the RFC10. Utilizing our state-of-the-art Cross Forged technology, this cutting-edge wheel boasts exceptional strength while remaining incredibly lightweight.
FINISHES
MACHINE SILVER / CHROME LIP
MACHINE BLACK / CHROME LIP
MATTE BLACK / GLOSS BLACK LIP
The RFC Series is the result of a redesign process that drew inspiration from the car community’s favorite designs from our RC Series. Using Cross Forged technology, each wheel model was strengthened and made lighter than their previous cast versions.

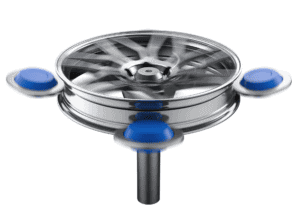

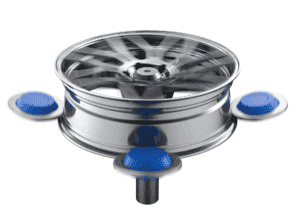

Our Cross Forged technology technique employs three hydraulic rollers, with pressure and heat, to stretch the barrel of the wheel to the specified diameter. While the wheel spins, the rollers stretch and compress the alloy, enhancing the overall structural rigidity and durability of the wheel.
Every design features spoke arrangements that not only enhance the wheel’s depth but also provide strength and durability that can withstand the most spirited drivers.
Step 1: Starting with a solid block of aluminum immense amounts of pressure is applied to “forge” the aluminum block into a wheel. The aluminum is forged into a disc using extreme heat and pressure.
Step 2: Once the disc starts to take shape, it is then flow formed into a spun blank. The spun black is heat treated to the specific conditions. The heated treated spun blank is then stretched to the customers final configuration.
Step 3: Finally the wheel is now drilled and the design is cut. After cutting, multiple coats of paint are applied to ensure a perfect, long lasting finish.
19″ x 8.5″
5×112 +25 /+35/ +42
5×114 +35
5×120 +33
19″ x 9.5″
5×112 +30 /+42
5×114 +40
5×120 +20/+35
19″ x 10.5″
5×114 +45
5×120 +30
CONCAVITY PROFILE
Standard
MID
WHEEL WIDTH
BOLT PATTERNS & OFFSETS
20″ x 8.5″
5×112 +42
5×114 +40
20″ x 9″
5×108 +40
5×112 +25 / +35 /+42
5×114 +15/ +25 /+35
5×120 +35
5×130 +45
20″ x 10″
5×108 +40
5×112 +22/ +33 / +45
5×114 +25 / +40
5×115 +15
5×120 +25 /+40
20″ x 11″
5×112 +28
5×114 +20 / +28
5×115 +20
5×120 +35 /+40
CONCAVITY PROFILE
Standard
MID
SUPER DEEP
WHEEL WIDTH
BOLT PATTERNS & OFFSETS
22″ x 9″
5×108 +42
5×112 +20 /+30
5×114 +35
5×115 +13
5×120 +15 / +30
5×130 +42
22″ x 10.5″
5×108 +42
5×112 +22 / +40
5×114 +42
5×120 +20 / +42
5×127 +22 / +30 / +40
22″ x 11″
5×112 +15
5×115 +15
22″ x 12
5×120 +22
CONCAVITY PROFILE
Standard
MID
DEEP
SUPER DEEP
Our Fitment Specialists have over a decade of experience perfecting the proper fitment for variety of vehicles. If you’re unsure of which wheel specs will fit your application best, contact us and one of our specialists will guide you in the right direction.
